ALIAS / CAS MODELER AND TRANSPORTATION & CAR DESIGNER
PORSCHE 911 CARRERA 4S
AUTODESK ALIAS 3D MODEL
THIS PROJECT CONSISTS OF A 3D MODEL OF A VEHICLE CURRENTLY IN PRODUCTION OF THE GERMAN TRADEMARK PORSCHE; SPECIFICALLY KNOWN AS MODEL 911 CARRERA 4S OF THE YEAR 2019. THIS PROJECT IS NOT SPONSORED BY THE BRAND AND IS COMPLETELY A PERSONAL PRACTICE OF THE USE OF THE 3D MODELING SOFTWARE. THIS 3D MODEL WAS REALIZED IN ITS ENTIRETY BY ME AND WAS COMPLETELY MADE WITH THE SOFTWARE FROM AUTODESK, ALIAS AUTO STUDIO.

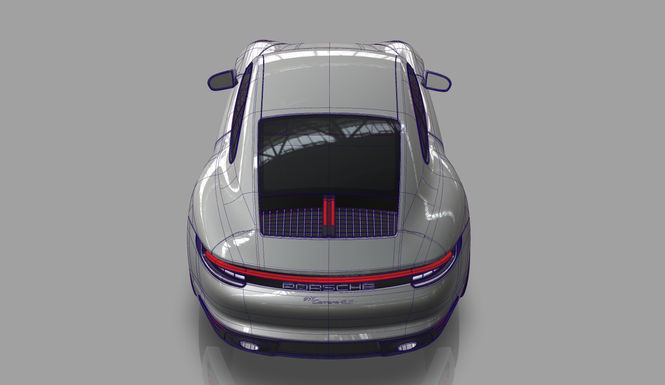

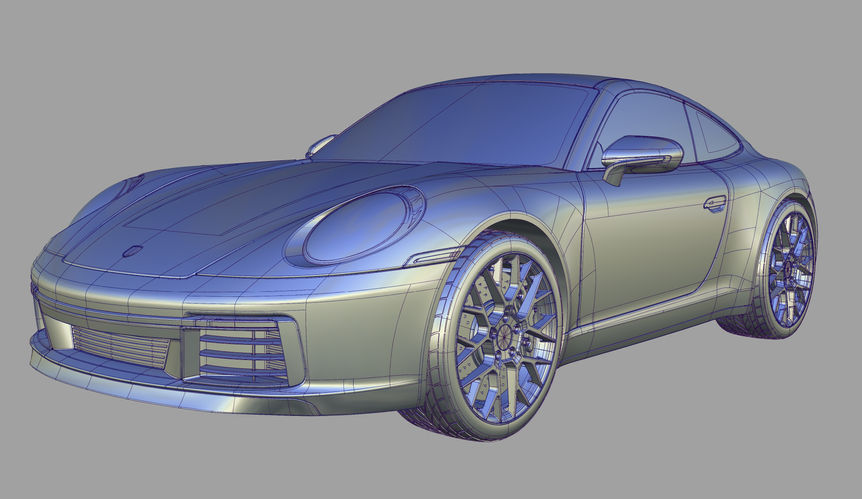

PATCH LAYOUT & SURFACE ANALYSIS
• FINAL WIREFRAME & COMPLETE RADS AND DETAILS.
• PERFECTING REFLECTIONS & TWEAKING SURFACE FLOW.
SURFACE ANALYSIS
SURFACE EVALUATION
• SMOOTH FLOWING AND UNIFORM REFLECTIONS ON THE SURFACES.
• MULTIPLE DIAGNOSTIC SHARERS WERE USED TO ANALYSE THE SURFACE TREATMENT.
SHADE-SKY DIAGNOSTIC SHADER
MODEL DETAILS
"ZEBRA" DIAGNOSTIC SHADER
ORTHOGONAL VIEWS
FINAL MODEL PRE-VISUALIZATION
• FINAL MODEL V-RED PREPARATION & MATERIAL PRE-VISUALIZATION.
• EVALUATION OF REFLECTIONS UNDER AN ENVIRONMENT.
FINAL MODEL DETAILS PRE-VISUALIZATION
V-RED MATERIAL PREPARATION
PORSCHE CARRERA 911 4S - 2019
V-RED RENDERS
AUTODESK V-RED 3D MODEL RENDERS
