ALIAS / CAS MODELER AND TRANSPORTATION & CAR DESIGNER
JAGUAR F-TYPE COUPE
AUTODESK ALIAS 3D MODEL
THIS PROJECT CONSISTS OF A 3D MODEL OF A VEHICLE CURRENTLY IN PRODUCTION OF THE BRITISH TRADEMARK JAGUAR; SPECIFICALLY KNOWN AS THE MODEL F-TYPE COUPE OF THE YEAR 2021. THIS PROJECT IS NOT SPONSORED BY THE BRAND AND IS COMPLETELY A PERSONAL PRACTICE OF THE USE OF THE 3D MODELING SOFTWARE. THIS 3D MODEL WAS MODELED IN ITS ENTIRETY BY ME AND WAS COMPLETELY MADE WITH THE SOFTWARE FROM AUTODESK, ALIAS AUTO STUDIO.
PATCH LAYOUT & SURFACE ANALYSIS
• FINAL WIREFRAME & COMPLETE RADS AND DETAILS.
• PERFECTING REFLECTIONS & TWEAKING SURFACE FLOW.
SURFACE ANALYSIS
SURFACE EVALUATION
• SMOOTH FLOWING AND UNIFORM REFLECTIONS ON THE SURFACES.
• MULTIPLE DIAGNOSTIC SHARERS WERE USED TO ANALYSE THE SURFACE TREATMENT.
SHADE-SKY DIAGNOSTIC SHADER
MODEL DETAILS
"ZEBRA" DIAGNOSTIC SHADER
ORTHOGONAL VIEWS

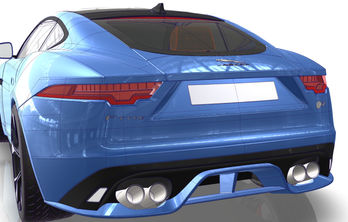

FINAL MODEL PRE-VISUALIZATION
• FINAL MODEL V-RED PREPARATION & MATERIAL PRE-VISUALIZATION.
• EVALUATION OF REFLECTIONS UNDER AN ENVIRONMENT.
FINAL MODEL DETAILS PRE-VISUALIZATION
V-RED MATERIAL PREPARATION
JAGUAR F-TYPE COUPE, 2021
V-RED RENDERS
AUTODESK V-RED 3D MODEL RENDERS
